Pharmaceutical Vacuum Leak Tester Manufacturer in India
Packaging integrity is critical in the pharmaceutical industry because packaging provides an important protective barrier between a pharmaceutical product and the external environment.
A package may appear properly sealed during visual inspection while still containing a pinhole, channel leak, closure problem, or sealing defect.
A Pharmaceutical Vacuum Leak Tester provides a controlled method for evaluating the integrity of suitable pharmaceutical packaging systems under vacuum conditions.
MARK Testing Instruments manufactures Digital, Computerized, and 7-inch HMI Touchscreen Vacuum Leak Testers in India for packaging quality-control laboratories, including advanced configurations designed to support pharmaceutical data-management requirements.
Why Is Leak Testing Important in Pharmaceutical Packaging?
Pharmaceutical packaging is expected to maintain its intended integrity during manufacturing, handling, transportation, and storage.
Potential packaging defects can include:
- Improper seals
- Pinholes
- Channel leaks
- Damaged sealing areas
- Packaging material defects
- Closure-related leakage
- Manufacturing damage
Leak testing provides an additional quality-control method for identifying packaging defects according to the applicable test procedure.
The required method should always be selected according to the packaging system, product requirements, and applicable quality procedure.
Pharmaceutical Packaging Applications
Depending on the applicable test method and equipment configuration, vacuum leak testing may be considered for:
- Pharmaceutical pouches
- Flexible packages
- Sachets
- Strip packaging
- Sealed plastic packages
- Bottles
- Containers
- Diagnostic-product packaging
- Medical packaging
- Other suitable sealed pharmaceutical packages
Important: Not every package should be tested using the same leak-test method. The package type and applicable test method should be identified before selecting the instrument.
How Does a Vacuum Leak Tester Work?
In a typical external vacuum test, the test sample is placed inside a transparent vacuum chamber.
Depending on the test procedure, the package may be submerged in a suitable liquid medium.
Pressure inside the chamber is reduced, producing a pressure differential between the package and its surrounding environment.
The package is then observed according to the applicable test method.
Typical Test Sequence
Sample Loading → Vacuum Generation → Stabilization → Hold Time → Observation → Test Completion → Vacuum Release → Result Recording
Advanced HMI-controlled models can automate several stages of this testing process.
MARK Pharmaceutical Vacuum Leak Tester Range
MARK Testing Instruments provides multiple Vacuum Leak Tester configurations so laboratories can select a system according to their testing, automation, reporting, and documentation requirements.
| Model | Control System | Printer | Data / Reporting | Recommended Application |
|---|---|---|---|---|
| MARK-VLT 650 | Digital | No | Standard operation | Routine QC |
| MARK-VLT 650P | Digital | Yes | Printed test report | Routine QC with documentation |
| MARK-CVLT 650 | Computerized | As configured | PC-based reporting | Electronic laboratory records |
| MARK-VLT HMI 650 | 7-inch HMI | No | Internal data storage | Advanced standalone QC |
| MARK-VLT HMI 650P | 7-inch HMI | Yes | Stored + printed records | Advanced QC documentation |
| MARK-VLT HMI 650P Pharma | 7-inch HMI | Yes | Advanced electronic records | Pharmaceutical applications |
MARK-VLT 650 – Digital Vacuum Leak Tester
The MARK-VLT 650 is designed for straightforward routine vacuum leak testing.
Key Features
- Digital vacuum indication
- Vacuum capability up to approximately 650 mmHg
- Oil-free vacuum generation
- Peak-hold functionality
- Transparent test chamber
- Simple laboratory operation
The Digital model is suitable for laboratories where sophisticated electronic record management is not required.
MARK-VLT 650P – Digital Vacuum Leak Tester with Printer
The MARK-VLT 650P combines digital vacuum leak testing with an inbuilt thermal printer.
Depending on the configured report format, printed test documentation can include:
- Test number
- Number of samples
- Set vacuum
- Hold time
- Date
- Time
- Result
- Remarks
This configuration is useful for laboratories requiring an immediate physical QC test record.
MARK-CVLT 650 – Computerized Vacuum Leak Tester
The MARK-CVLT 650 is intended for laboratories requiring computerized operation and electronic reporting.
Computerized Features
- PC-based operation
- Electronic test reports
- Automatic report storage
- Test identification
- Date and time
- Operator information
- Report printing
- Historical record management
This configuration is suitable where electronic documentation forms an important part of the laboratory workflow.
MARK-VLT HMI 650 – 7-Inch HMI Touchscreen
The MARK-VLT HMI 650 provides advanced standalone touchscreen operation.
Key HMI Features
- 7-inch color HMI touchscreen
- Vacuum capability up to approximately 650 mmHg
- Programmable test operation
- Controlled vacuum stabilization
- Hold-time control
- Up to 10 pre-test profiles
- Internal test-result storage
- Date and time records
- Password-protected access
- USB data transfer on applicable configurations
- Storage for up to 1,000 test results
The HMI interface reduces repeated parameter entry and simplifies routine operation for quality-control personnel.

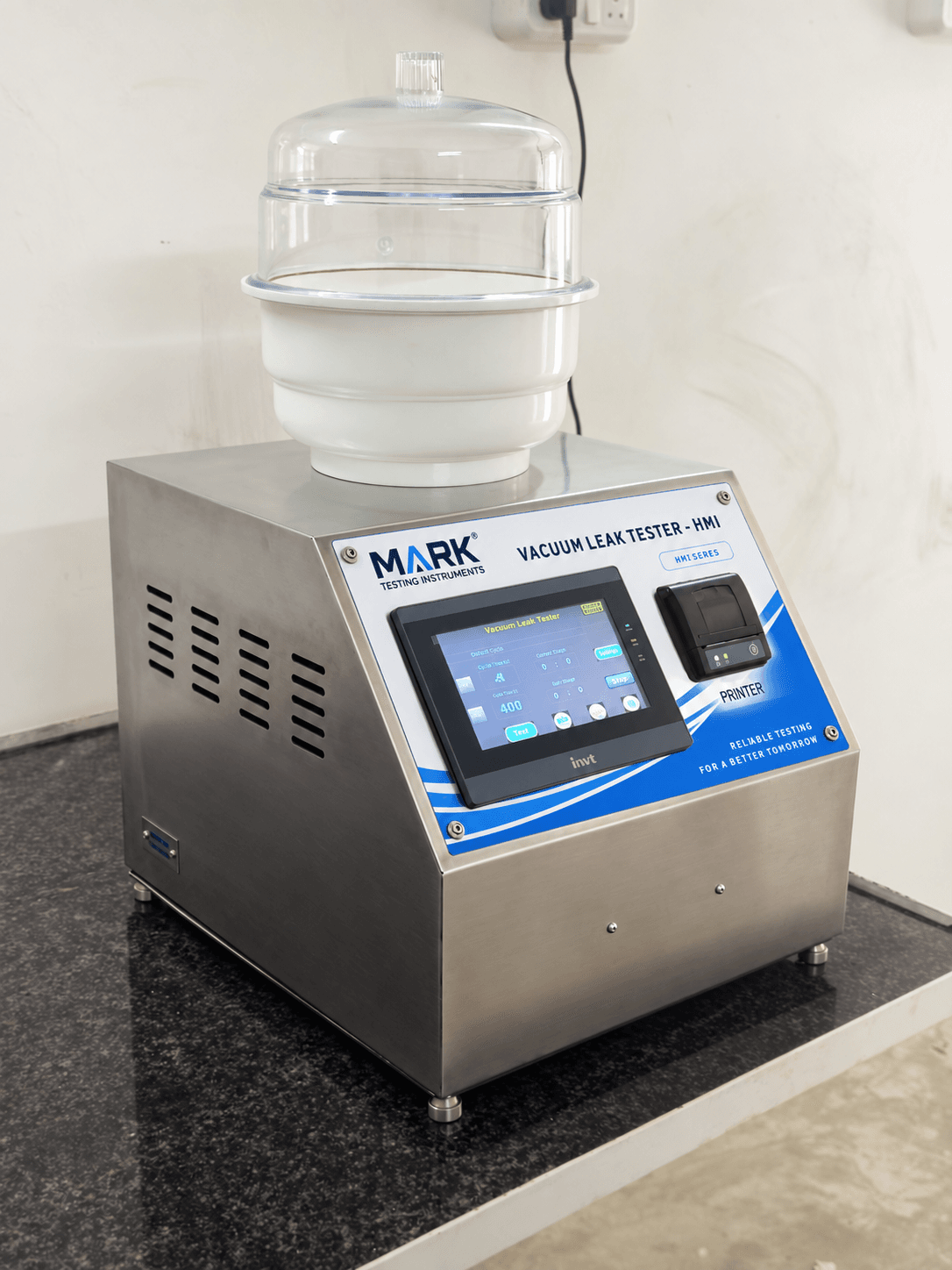

MARK-VLT HMI 650P – HMI Touchscreen with Thermal Printer
The MARK-VLT HMI 650P combines:
7-Inch HMI Touchscreen + Automated Test Control + Internal Test Records + Thermal Printing
Depending on the configured report, printed information can include:
- Company / Customer details
- Sample name
- Sample number
- Operator name
- Vacuum set value
- Date
- Time
- Pass / Fail status
- Remarks
This configuration is suitable for laboratories requiring electronic test management together with immediate printed documentation.
MARK-VLT HMI 650P Pharma – 21 CFR Part 11 Ready Version
For pharmaceutical laboratories requiring more advanced control over electronic records and users, MARK offers the:
MARK-VLT HMI 650P Pharma – 21 CFR Part 11 Ready Version
Advanced Pharma Features
- 7-inch HMI touchscreen
- Multi-level user access
- Password protection
- Audit-trail functionality
- Electronic record management
- Electronic signature support
- Internal real-time clock
- Test-data storage
- USB data handling
- Data backup and restore
- Inbuilt thermal printer
- Real-time vacuum monitoring
- Vacuum curve / graph display
- Automatic leak-test countdown
- Automatic vacuum release
The exact functionality supplied should be defined in the approved technical specification and User Requirement Specification (URS) before ordering.
What Does 21 CFR Part 11 Ready Mean?
An instrument containing user access, audit trails, electronic records, and electronic-signature functionality does not automatically make an entire laboratory process compliant with 21 CFR Part 11.
Compliance can also depend on:
- System validation
- Standard Operating Procedures (SOPs)
- User management
- Access control
- Personnel training
- Electronic-record procedures
- Record retention
- Data review
- Backup procedures
- Change control
Therefore, the applicable MARK system is described as 21 CFR Part 11 Ready, indicating that it is designed with functionality that can support such requirements.
The pharmaceutical user's own quality and validation teams should determine the final compliance requirements.
Technical Parameters to Compare Before Purchase
Before purchasing a Pharmaceutical Vacuum Leak Tester, evaluate the complete technical configuration rather than comparing price alone.
| Parameter | What to Evaluate |
|---|---|
| Vacuum Range | Required working vacuum |
| Accuracy | Measurement accuracy |
| Chamber Size | Compatibility with largest sample |
| Vacuum Generation | Pump / vacuum generation system |
| Hold Time | Required test duration |
| Control System | Digital, HMI, or Computerized |
| Test Profiles | Number of recipes / programs required |
| Data Storage | Required number of test records |
| Printer | Physical report requirement |
| USB | Data-transfer requirement |
| Software | PC operation / reporting requirement |
| User Management | Password and access-control requirements |
| Audit Trail | Requirement for regulated applications |
| Electronic Signature | Requirement according to quality system |
| Calibration | Calibration and traceability requirements |
| Validation | IQ/OQ or other documentation requirements |
Vacuum Range
Determine the working vacuum required by your test procedure.
MARK Vacuum Leak Tester configurations are available with vacuum capability up to approximately 650 mmHg, depending on model.
A higher maximum vacuum does not automatically make an instrument more suitable. The required working range should be selected according to the applicable test procedure.
Vacuum Measurement Accuracy
Applicable MARK configurations specify vacuum measurement accuracy of:
±0.05%
The exact specification should be verified for the selected model before ordering.
Chamber Size
The test chamber must accommodate the largest intended package.
MARK Vacuum Leak Tester configurations are available with approximately 300 mm transparent chambers, depending on the selected model.
Before ordering, provide:
- Maximum sample length
- Maximum sample width
- Maximum sample height
- Number of samples per test
- Packaging type
Customized chamber requirements can be discussed for larger packages.
Vacuum Generation System
Applicable MARK models use an oil-free vacuum generation system, helping reduce routine oil-related maintenance.
When comparing machines, buyers should evaluate:
- Vacuum generation capability
- Stability
- Maintenance requirement
- Noise
- Serviceability
- Spare-part availability
Test Data Storage
Selected MARK HMI systems can store up to:
1,000 Test Results
Depending on the selected configuration, stored test information may include:
- Test number
- Sample identification
- Date
- Time
- Vacuum setting
- Hold time
- Operator
- Result
- Remarks
Relevant ASTM Test Methods
The correct test method depends on the package and testing objective.
ASTM D3078
ASTM D3078 addresses bubble-emission leak testing of suitable flexible packaging containing headspace gas.
ASTM D4991
ASTM D4991 addresses leakage testing of empty rigid containers using a vacuum method.
ASTM D6653/D6653M
ASTM D6653/D6653M addresses the effects of high altitude on packaging systems using vacuum conditions.
ASTM F2096
ASTM F2096 addresses gross leak detection through internal pressurization and bubble observation.
Technical Note: ASTM F2096 should not automatically be treated as identical to an external vacuum-chamber test because the test principle involves internal pressurization.
The required standard and test principle should always be confirmed before equipment selection.
Digital vs HMI vs Computerized Vacuum Leak Tester
Select a Digital Model When:
- Testing requirements are straightforward
- Test volume is moderate
- Manual records are acceptable
- Advanced electronic data management is unnecessary
Select Digital with Printer When:
- Routine testing is required
- Immediate printed documentation is useful
Select Computerized When:
- PC-based reporting is required
- Electronic reports need to be retained
- Historical results need easier retrieval
Select HMI Touchscreen When:
- Multiple test parameters are used
- Touchscreen operation is preferred
- Stored test profiles are useful
- Internal result storage is required
- Standalone automation is preferred
Select HMI with Printer When:
- Electronic data management is required
- Immediate physical test reports are also required
Consider the Pharma Version When:
- Individual user access is required
- Audit-trail functionality is required
- Electronic signatures form part of the workflow
- Electronic-record management is important
- Validation requirements are more demanding
Information to Provide When Requesting a Quotation
For an appropriate equipment recommendation, provide the following information:
- Pharmaceutical package type
- Maximum package dimensions
- Number of samples per test
- Required vacuum range
- Required hold time
- Applicable test method
- Required chamber size
- Digital, HMI, or Computerized preference
- Printer requirement
- Data-storage requirement
- User-access requirement
- Audit-trail requirement
- Electronic-signature requirement
- Calibration requirement
- Validation-documentation requirement
Providing this information helps the manufacturer recommend an appropriate configuration rather than quoting a generic machine.
Frequently Asked Questions
Which Vacuum Leak Tester is suitable for pharmaceutical packaging?
The appropriate model depends on the package, applicable test method, vacuum requirement, sample dimensions, and laboratory documentation requirements.
Routine testing may require a Digital model, while laboratories requiring advanced electronic data controls may prefer HMI or pharma-oriented configurations.
Do pharmaceutical laboratories require an HMI Vacuum Leak Tester?
Not necessarily.
An HMI system becomes useful where automated parameter control, stored test profiles, result storage, user access, and advanced data management are required.
Does MARK offer a Vacuum Leak Tester with an inbuilt printer?
Yes.
MARK offers both Digital with Thermal Printer and 7-inch HMI Touchscreen with Thermal Printer configurations.
Is a Computerized Vacuum Leak Tester available?
Yes.
The MARK-CVLT 650 is designed for computerized operation and electronic reporting.
Is a 21 CFR Part 11 Ready model available?
Yes.
The MARK-VLT HMI 650P Pharma is designed as a 21 CFR Part 11 Ready configuration for applications requiring advanced electronic-record and user-management functionality.
Is higher vacuum always better?
No.
The correct vacuum should be selected according to the package and applicable test procedure. A higher maximum vacuum value does not automatically make an instrument more suitable.
Why Choose MARK Vacuum Leak Testing Systems?
MARK Testing Instruments provides Vacuum Leak Testing Systems ranging from straightforward routine QC instruments to advanced HMI and pharmaceutical configurations.
Available Models
- MARK-VLT 650 – Digital
- MARK-VLT 650P – Digital with Thermal Printer
- MARK-CVLT 650 – Computerized
- MARK-VLT HMI 650 – 7-Inch HMI Touchscreen
- MARK-VLT HMI 650P – HMI with Thermal Printer
- MARK-VLT HMI 650P Pharma – 21 CFR Part 11 Ready Version
Need Help Selecting the Correct Vacuum Leak Tester?
Choosing the correct Vacuum Leak Tester should begin with your actual package and testing requirements.
Send us:
Package Type + Maximum Sample Dimensions + Required Vacuum + Applicable Test Method + Reporting / Data Requirements
Our technical team can help recommend an appropriate configuration.
MARK Testing Instruments
Email: sales@marktestinginstruments.com
Website: www.marktestinginstruments.com
Vacuum Leak Tester product category
MARK-VLT HMI 650P https://www.marktestinginstruments.com/category/paper-and-packaging-testing/product/7-hmi-touchscreen-vacuum-leak-tester
MARK-VLT HMI 650P Pharma https://www.marktestinginstruments.com/category/paper-and-packaging-testing/product/7-hmi-touchscreen-vacuum-leak-tester-with-thermal-printer
