Best Practices for Universal Testing Machine Testing in Indian Packaging and Manufacturing Labs
A Universal Testing Machine (UTM) is an important laboratory instrument used to evaluate the mechanical properties of materials under controlled loading conditions.
Manufacturers across India use Universal Testing Machines for tensile, compression, flexural and other mechanical testing applications.
Accurate UTM testing helps manufacturers verify raw-material quality, compare material grades, monitor production consistency and investigate product failures.
However, reliable results depend on proper specimen preparation, machine configuration, suitable fixtures, calibration and correct testing procedures.
MARK Testing Instruments offers Universal Testing Machine configurations, including the Computerized Smart Series — Servo Motor Based, designed for advanced mechanical testing applications.
This guide explains best practices for UTM testing in Indian packaging and manufacturing laboratories.
What Is a Universal Testing Machine?
A Universal Testing Machine is a mechanical testing system designed to apply controlled force or displacement to a specimen.
Depending on its configuration, a UTM can perform:
- Tensile testing
- Compression testing
- Shear testing
- Three-point bending testing
- Other mechanical tests using appropriate fixtures
The instrument measures applied force and may also measure crosshead displacement, specimen extension or strain.
Computerized configurations can provide graphical analysis and electronic reports.
Why Universal Testing Machine Testing Is Important
Mechanical properties influence how materials perform during manufacturing, handling and service.
UTM testing helps laboratories:
- Verify material specifications
- Compare different material grades
- Monitor manufacturing consistency
- Evaluate product development changes
- Investigate mechanical failures
- Support incoming-material inspection
- Maintain quality-control documentation
- Evaluate material performance
For Indian manufacturers, selecting a suitable UTM can improve laboratory testing consistency and support product quality requirements.
Applications of Universal Testing Machines
Plastic Manufacturing
UTM systems can evaluate tensile and flexural properties of suitable plastic specimens.
Packaging Industry
Testing can support mechanical evaluation of packaging materials and suitable packaging components.
Rubber Industry
With appropriate grips, extensometry and testing methods, UTM systems can evaluate rubber and elastomer properties.
Metal Industry
Suitable higher-capacity configurations can support mechanical testing of metallic specimens.
Textile Industry
With suitable grips and test methods, UTM systems can evaluate tensile properties of yarns, fabrics and other textile materials.
Research and Development
UTM systems help compare material formulations, mechanical performance and product designs.
Types of Tests Performed on a Universal Testing Machine
1. Tensile Testing
Tensile testing measures the response of a material when subjected to a pulling force.
Possible results include:
- Maximum tensile force
- Tensile strength
- Elongation
- Yield behaviour
- Force-versus-displacement curve
- Stress-versus-strain curve, where suitable measurements are available
2. Compression Testing
Compression testing evaluates the response of a specimen under compressive loading.
Depending on the material and test method, results may include:
- Maximum compression force
- Compressive strength
- Deformation
- Compression behaviour
3. Shear Testing
Shear testing evaluates the resistance of a suitable specimen to shear loading.
Dedicated fixtures and material-specific standards are required.
4. Three-Point Bending Testing
Three-point bending testing evaluates flexural behaviour by supporting a specimen at two points and applying a load between them.
Possible results include:
- Flexural strength
- Flexural modulus, where appropriately measured
- Maximum bending load
- Load-versus-deflection behaviour

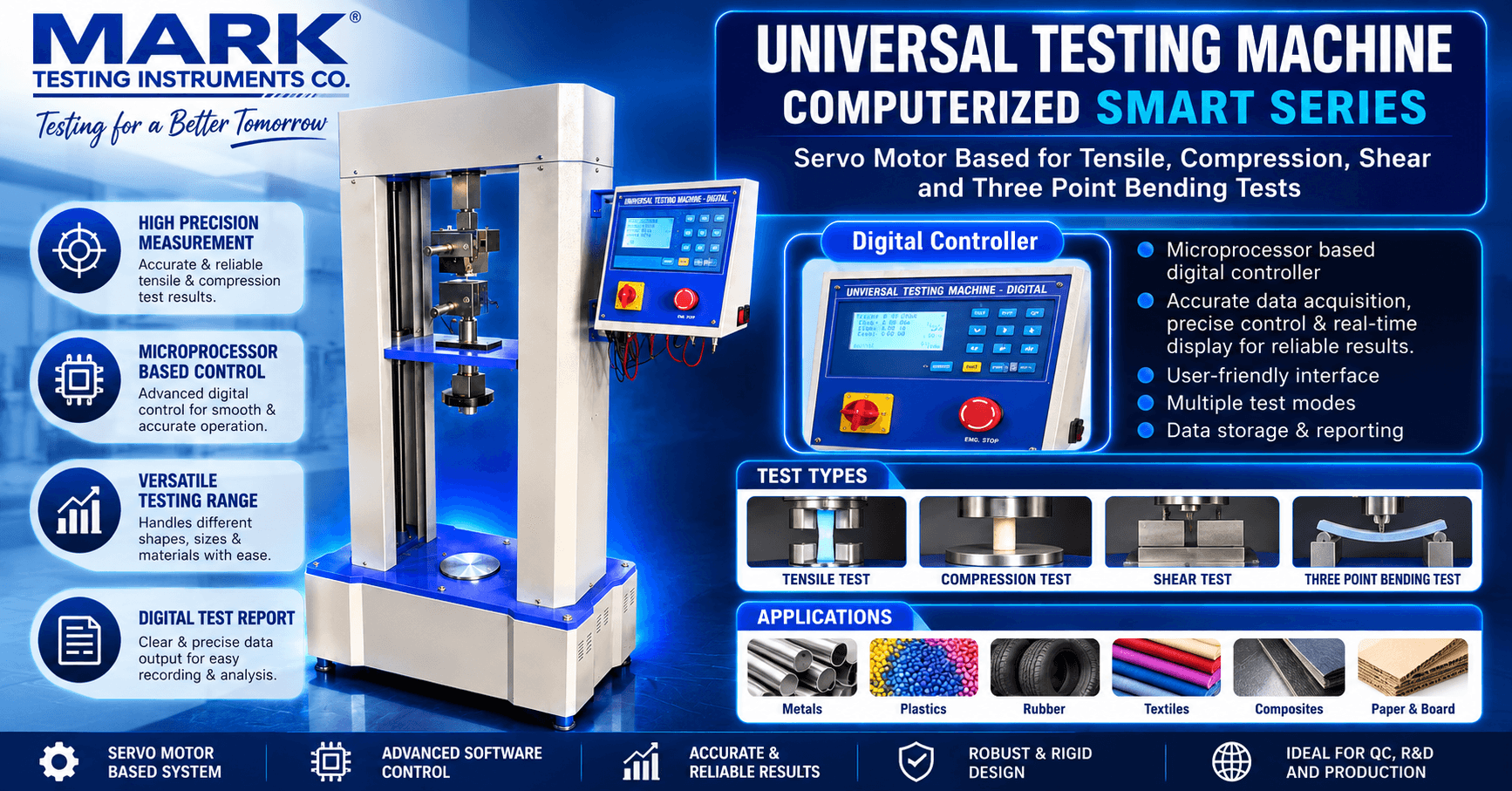

MARK Universal Testing Machine — Computerized Smart Series
The MARK Universal Testing Machine — Computerized Smart Series, Servo Motor Based is designed for mechanical testing applications requiring controlled loading and software-based data analysis.
Key Features
- Servo motor-based drive system
- Computerized control
- Tensile testing capability
- Compression testing capability
- Shear testing with suitable fixtures
- Three-point bending with suitable fixtures
- Load measurement system
- Controlled crosshead movement
- Real-time graphical display
- Electronic test reporting
- Data storage
- Suitable specimen grips and fixtures
- Safety and travel limit functions
The exact test capabilities depend on machine capacity, installed fixtures, measurement systems and software configuration.
Technical Specifications
Selected MARK Universal Testing Machine configurations include:
| Parameter | Specification |
|---|---|
| Instrument | Universal Testing Machine |
| Series | Computerized Smart Series |
| Drive | Servo Motor Based |
| Standard Capacity | 100 kgf on selected table-top configurations |
| Optional Capacity | Up to 5000 kgf |
| Load Readability | 0.01 kg on specified models |
| Stated Accuracy | ±0.05% on specified models |
| Traverse | 900 mm, customizable on selected models |
| Control | Computerized |
| Speed | Variable, model dependent |
| Test Modes | Tensile / Compression / Shear / Bending |
| Software | Test Control and Reporting |
| Graph | Real-Time Load vs Displacement |
| Grips | According to specimen type |
| Power Supply | 220 V AC, Single Phase, 50 Hz on specified configurations |
| Warranty | 12 Months |
Note: These are specifications associated with selected MARK configurations, not guaranteed specifications for every servo motor UTM. Final capacity, accuracy, travel, speed and electrical requirements must be confirmed for the quoted model.
Applicable Testing Standards
ASTM D638 — Tensile Properties of Plastics
ASTM D638 is used for determining tensile properties of suitable plastic specimens.
ASTM D790 — Flexural Properties of Plastics
ASTM D790 covers flexural properties of suitable unreinforced and reinforced plastics and electrical insulating materials.
Other Relevant Methods
Depending on the material and application, additional standards may include:
- ASTM D695 for compression properties of rigid plastics
- ASTM D412 for tensile properties of suitable rubber materials
- ASTM E8/E8M for tensile testing of metallic materials
- ASTM D882 for tensile properties of thin plastic sheeting
The appropriate standard must be selected according to the material and required test.
Best Practices for Universal Testing Machine Testing
1. Select the Correct Test Method
Before testing, identify:
- Material type
- Required property
- Applicable standard
- Specimen geometry
- Testing speed
- Required result calculations
Do not use a single test procedure for all materials.
2. Prepare the Specimen Correctly
Specimen preparation affects result accuracy and repeatability.
Check:
- Dimensions
- Thickness
- Width
- Surface condition
- Edge quality
- Gauge length
- Visible damage
3. Condition the Specimen
Follow the conditioning requirements of the selected method.
Temperature and humidity may influence material properties.
4. Select the Correct Load Cell
The load cell should provide suitable capacity and measurement performance for the expected force.
5. Choose Suitable Grips and Fixtures
Use the correct fixture for the test:
- Tensile grips
- Compression platens
- Shear fixtures
- Three-point bending fixture
6. Verify Machine Alignment
Misalignment can introduce unintended loading and affect results.
7. Set the Required Testing Speed
Testing speed must follow the selected method.
8. Check Calibration Status
Verify the calibration status of the force measurement system and other required measurement functions.
9. Monitor the Test
Observe specimen behaviour and machine operation during testing.
10. Review the Results
Check for unusual failure patterns, grip slippage, invalid specimens and unexpected data.
Step-by-Step UTM Testing Procedure
Step 1: Switch On the Machine
Connect the UTM to the specified electrical supply and follow the manufacturer's startup procedure.
Step 2: Select the Test Method
Choose tensile, compression, shear or bending according to the required application.
Step 3: Install the Fixture
Fit the appropriate grips or test fixture.
Step 4: Prepare the Specimen
Measure and record the required specimen dimensions.
Step 5: Enter Test Parameters
Configure:
- Sample identification
- Material
- Test method
- Speed
- Dimensions
- Required measurement range
- Report settings
Step 6: Mount the Specimen
Position the specimen correctly.
Step 7: Zero the Measurement System
Follow the approved zeroing procedure.
Step 8: Start the Test
Begin loading under the selected test conditions.
Step 9: Record the Results
The instrument measures force and other configured parameters.
Step 10: Generate the Report
Review and save the test results.
Understanding UTM Test Results
Maximum Force
The highest force recorded during the test.
Tensile Strength
The applied tensile force divided by the appropriate original cross-sectional area.
Compressive Strength
The compressive force divided by the relevant specimen area, as defined by the test method.
Flexural Strength
Calculated from bending test data using the applicable method and specimen geometry.
Elongation
The extension of a specimen relative to its original gauge length, measured using a suitable method.
Force-versus-Displacement Graph
Displays applied force against measured displacement.
Common UTM Testing Errors
Specimen Slippage
Causes
- Incorrect grips
- Insufficient clamping
- Improper mounting
Corrective Actions
- Use suitable grips
- Adjust clamping
- Check alignment
Premature Specimen Failure
Causes
- Damaged specimen
- Grip stress concentration
- Incorrect preparation
Corrective Actions
- Improve specimen preparation
- Inspect grips
- Follow the standard
Inconsistent Results
Causes
- Material variation
- Different test speeds
- Incorrect conditioning
- Measurement errors
Corrective Actions
- Standardize the procedure
- Verify test settings
- Review calibration
Incorrect Stress Calculation
Causes
- Incorrect specimen dimensions
- Wrong units
- Software configuration errors
Corrective Actions
- Verify dimensions
- Confirm units
- Review calculation settings
Universal Testing Machine Price in India
The price of a Universal Testing Machine depends on:
- Load capacity
- Servo motor and drive system
- Force measurement accuracy
- Test speed range
- Available crosshead travel
- Tensile grips
- Compression platens
- Shear fixtures
- Bending fixtures
- Computer software
- Extensometer requirements
- Calibration documentation
- Installation and training
Buyers should compare the complete technical configuration rather than machine price alone.
Universal Testing Machine for Noida and Delhi NCR
Manufacturers in Noida and Delhi NCR can evaluate MARK Universal Testing Machines for plastics, packaging materials, rubber and other suitable industrial applications.
Before requesting a quotation, provide:
- Material type
- Required tests
- Applicable standards
- Expected maximum load
- Specimen dimensions
- Required fixtures
- Reporting requirements
- Calibration requirements
Frequently Asked Questions
What is a Universal Testing Machine?
A Universal Testing Machine is used to apply controlled mechanical loading to specimens for evaluating material properties.
Which tests can a UTM perform?
Depending on configuration, a UTM can perform tensile, compression, shear and bending tests.
What is the advantage of a servo motor UTM?
A properly configured servo motor system supports controlled motion and programmable testing conditions.
Can one UTM test plastics, rubber and metals?
A suitably configured UTM may support different materials, provided capacity, grips, fixtures and test methods are appropriate.
Is Computerized UTM software available?
Yes. MARK offers Computerized configurations with graphical analysis and electronic reporting.
Which standards are relevant?
ASTM D638 and ASTM D790 are relevant to suitable plastic tensile and flexural testing applications.
Request a Universal Testing Machine Quotation
MARK Testing Instruments offers Universal Testing Machines for material quality-control and research laboratories.
For model selection, send:
Material + Required Tests + Test Standards + Maximum Load + Specimen Dimensions + Fixtures + Reporting Requirements
